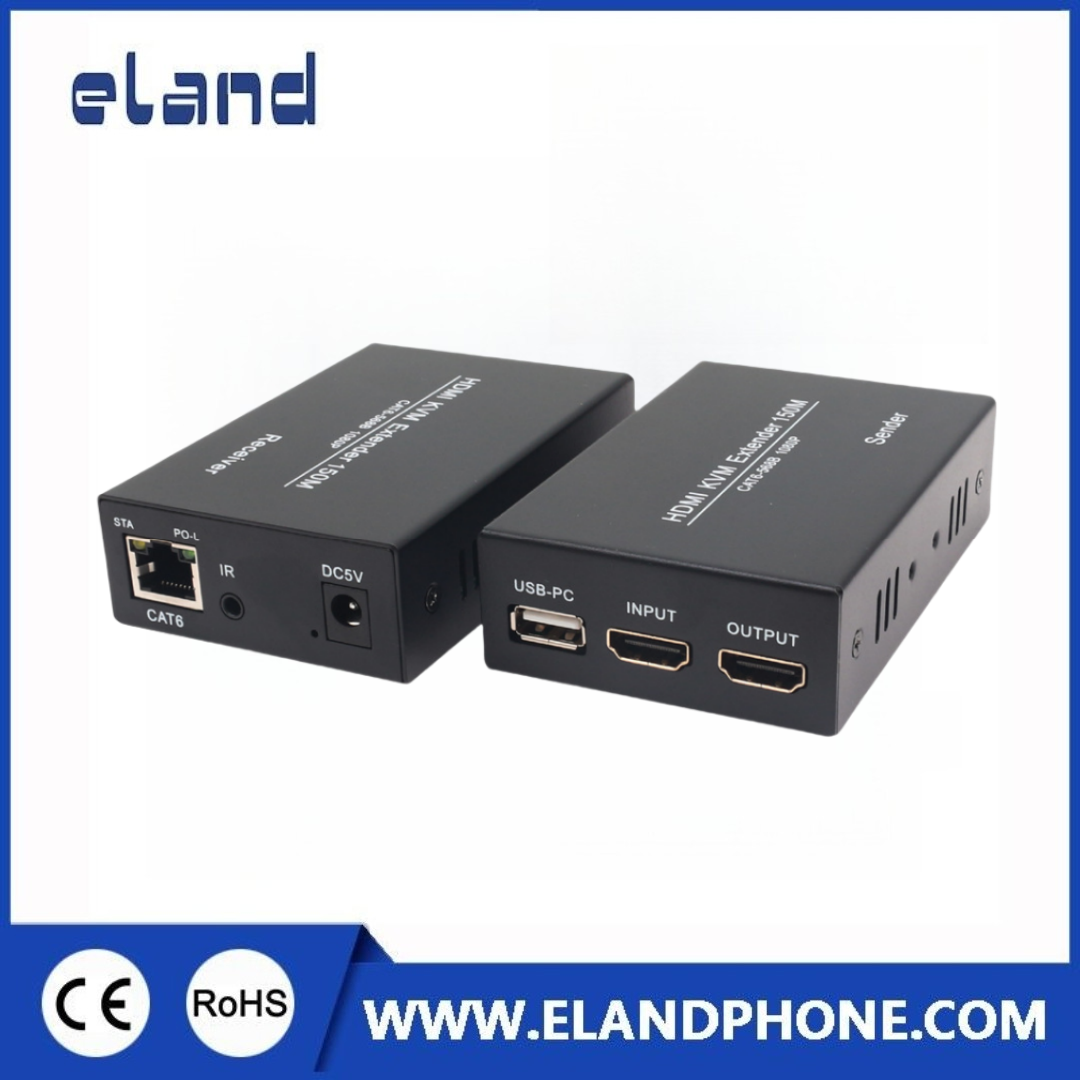

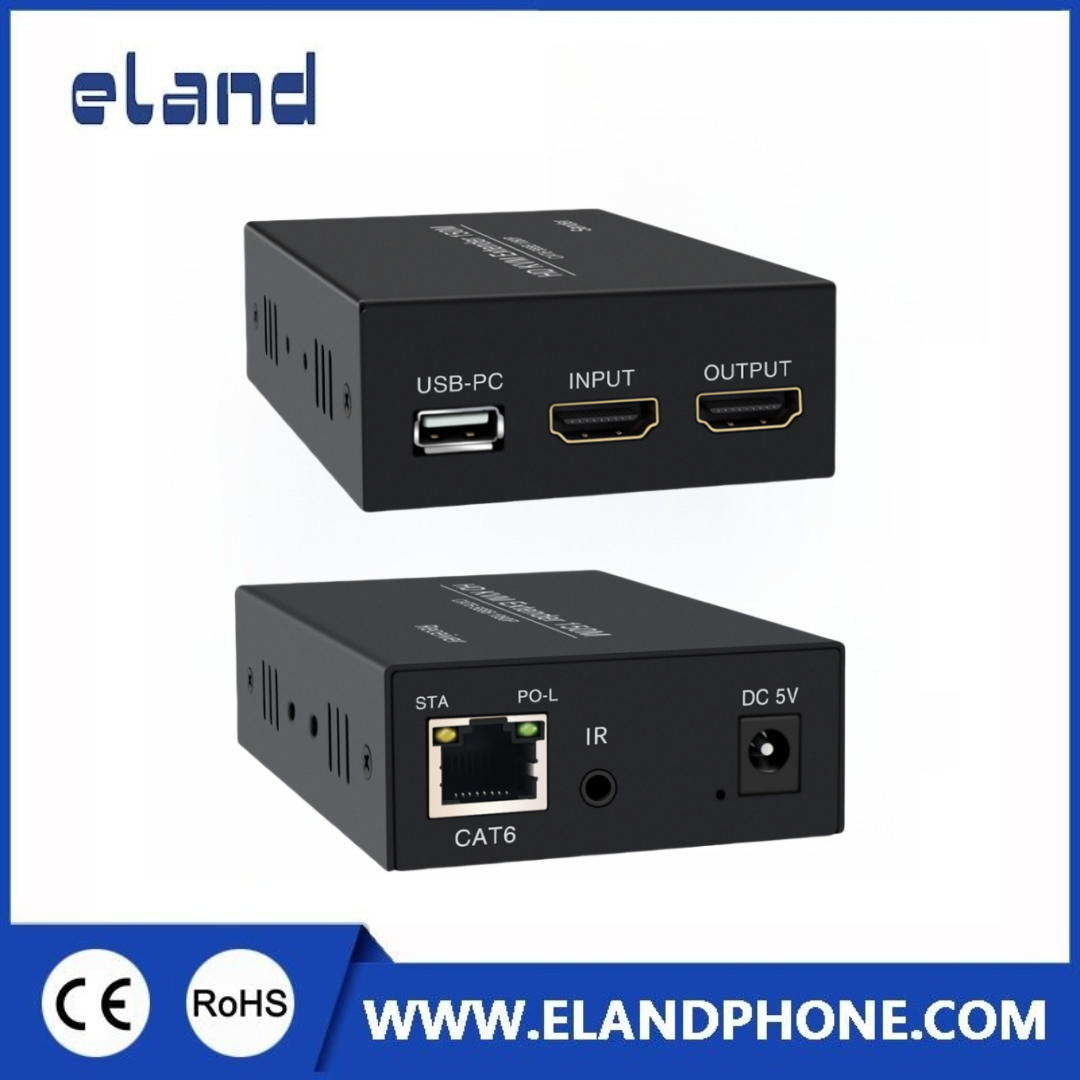

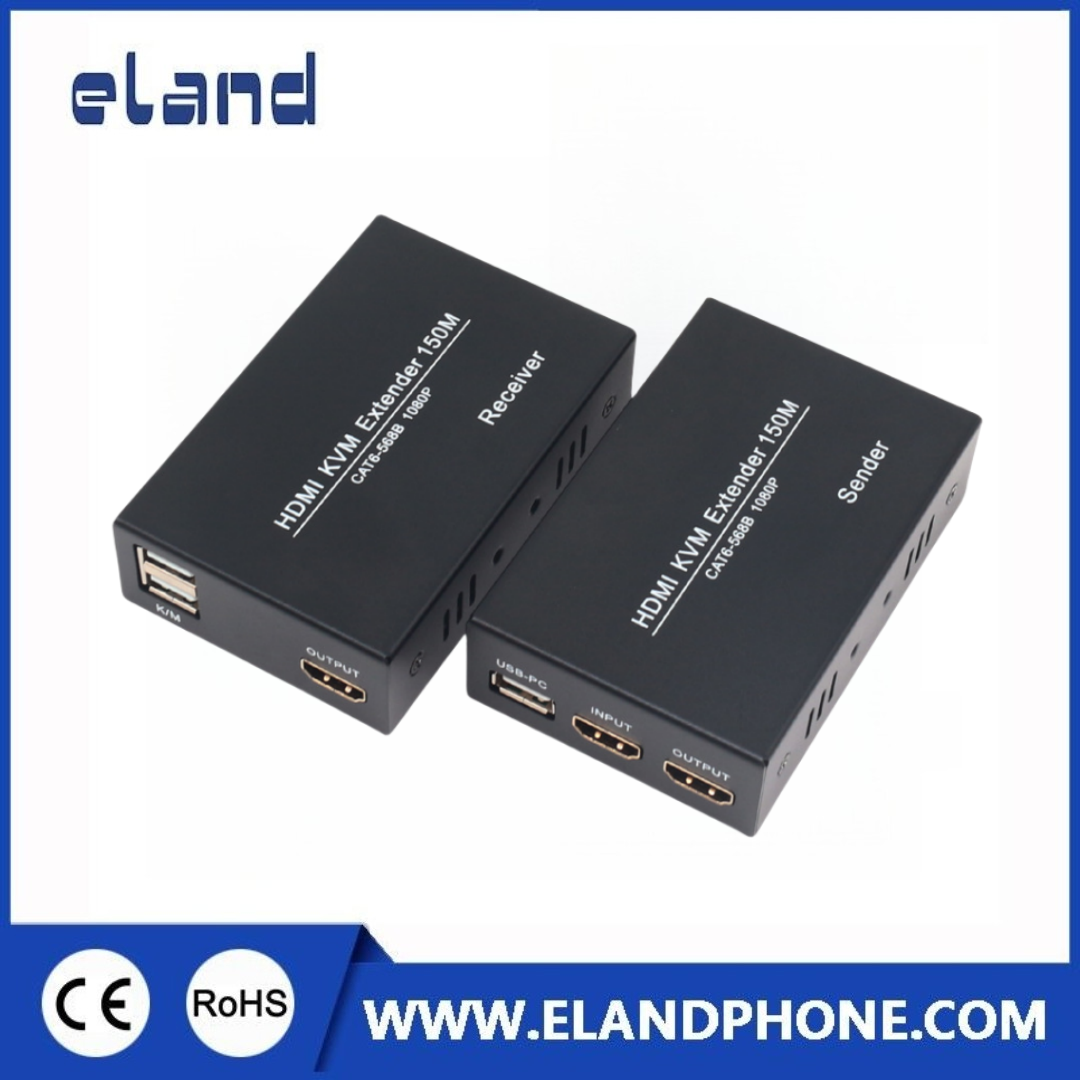

EL-A409A 150M HDMI KVM Extender with IR


MODEL:EL-A409A

ITEM:  150M HDMI KVM Extender 1080P

Introduction:

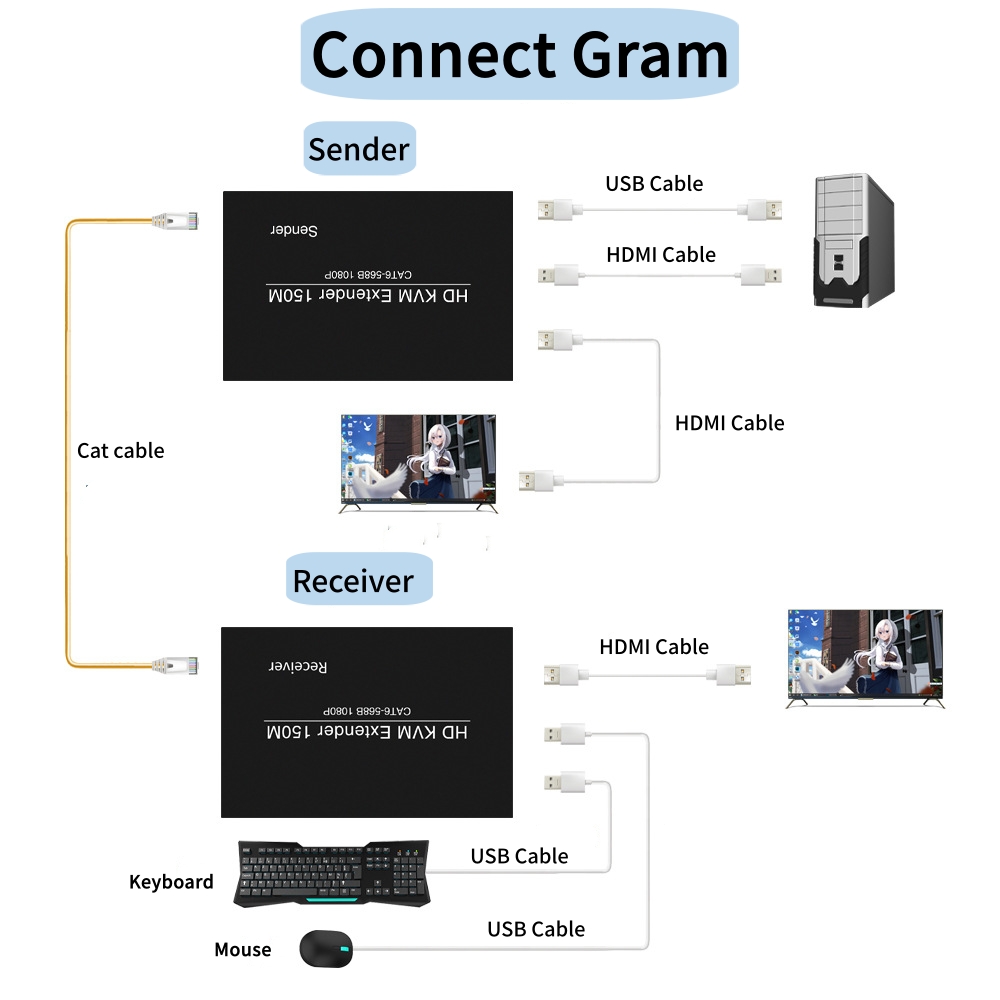

  The 150 M single network cable extender is a device used for extending and transmitting high-definition HDMI signals and USB keyboard and mouse signals. It is suitable for use when the maximum length of the high-definition cable cannot meet the transmission distance. This product transmits high-definition HDMI signals and USB keyboard and mouse signals uncompressed to 150 meters through a single Ethernet cable of CAT6 or higher specifications.

This product supports infrared extension function, and the extender has built-in EDID function, greatly improving the compatibility of the device. This device has the performance characteristics of long transmission distance, low usage cost, easy installation, direct insertion and use, and good compatibility. It is a stable and efficient transmission method, widely used in high-definition conference systems, high-definition film and television shooting, high-definition teaching systems, high-definition digital advertising, high-definition monitoring systems and other places for audio and video transmission.

Features:



Resolution support 1920* 1080@60Hz .

Supports mouse and keyboard functions.

Supports infrared extension function.

Support loop output at the transmitting end.

The use of CAT-6e cables can achieve a transmission distance of up to 150 meters.

Built in ESD static protection circuit.

Built in EDID, automatic recognition, strong compatibility.

Compliant with HDCP1.2; HDMI1.4 standard.

Micro compression, no delay.

Plug and play, easy to install.

Specifications:

Signal type: HDMI+USB

Support protocol: HDMI1.4; HDCP1.2

Video bandwidth: 10.2Gbps

Maximum supported resolution: 1920* 1080@60Hz Downward compatibility

Transmission distance: CAT-5e/120 meters CAT-6e/150 meters 1080P

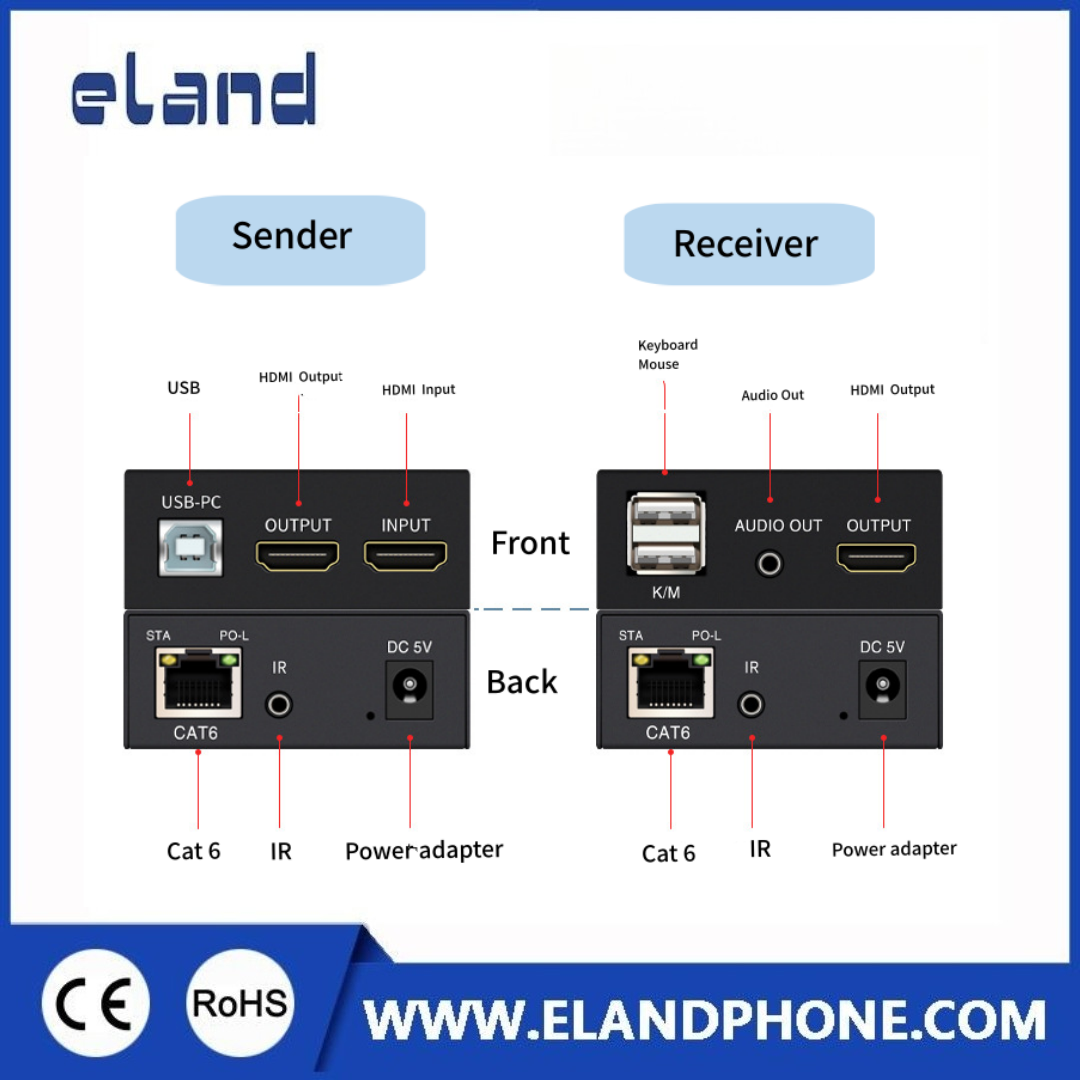

Video interface: HDMI-A interface

Supports USB version: USB 1.1 for keyboard and mouse transfer function

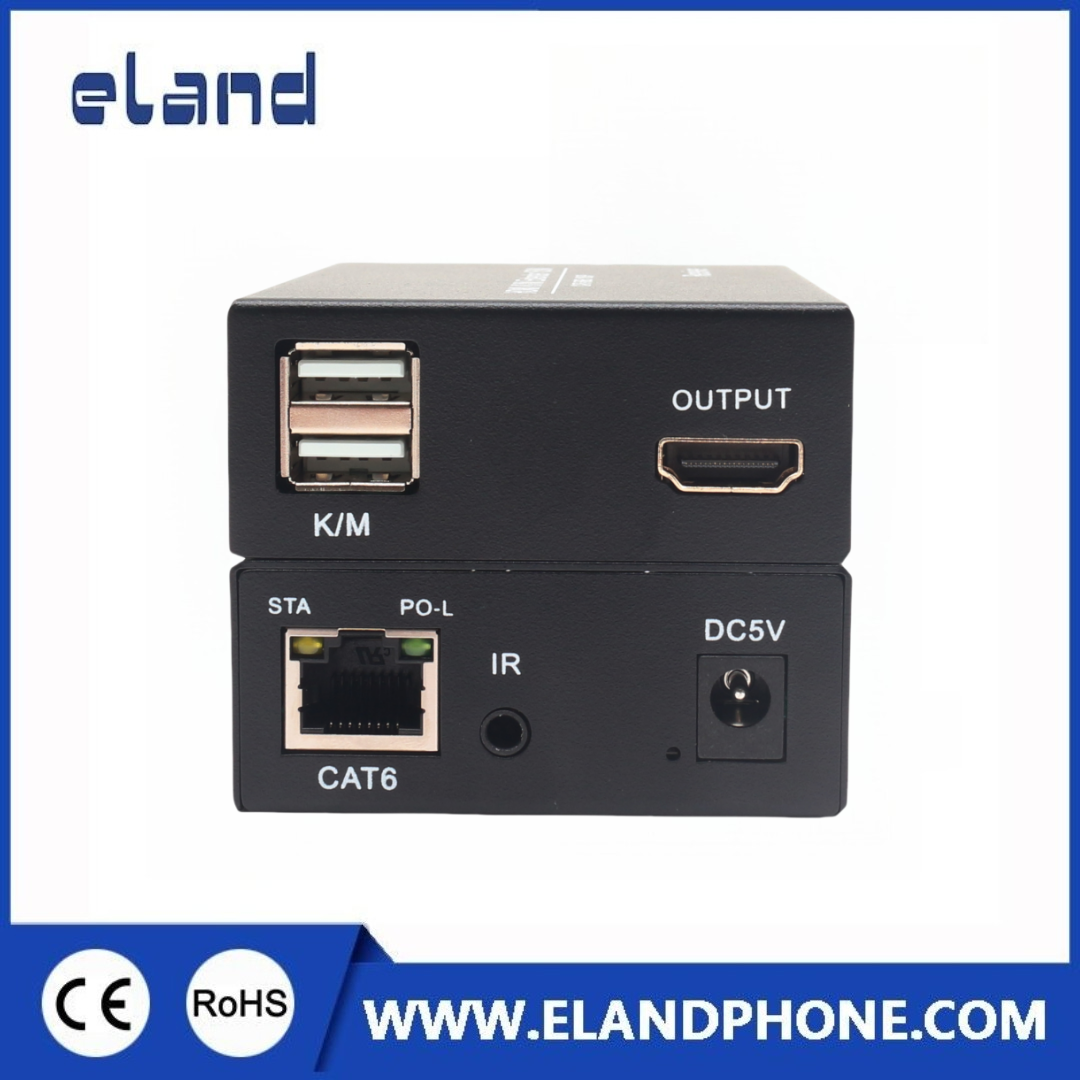

USB interface: TX: USB-A RX: USB-A double-layer

HDMI interface impedance: 100 ohms

Infrared extension: To choose a broadband one transmitter and one receiver infrared transmission and reception line

Suggested length for HDMI cable: Standard HDMI copper wire is less than 10 meters

Product size Sender (mm): 99 (W) X 65 (D) X 27 (H) mm

Product size Receiver (mm): 99 (W) X 65 (D) X 27 (H) mm

Weight (net weight) Sender+Receiver: 350G

Operating temperature: 0 to+70

Operating humidity: 10% to 85% RH (no condensation)

Power supply: DC5V 1A * 2PCS
