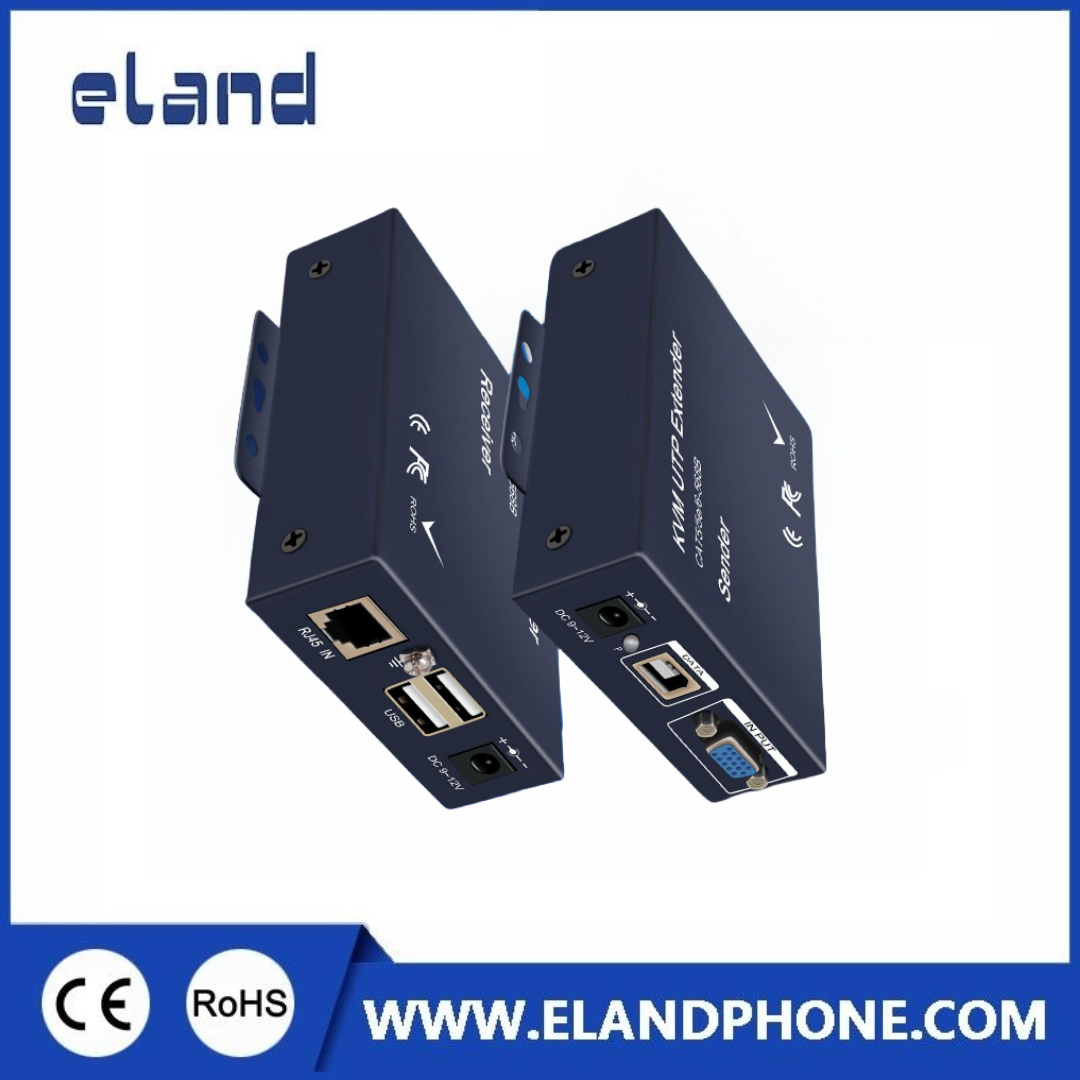

EL-A430 300M VGA KVM EXTENDER

Introduction:

This VGA KVM extender provides extension of VGA video audio signal long distances over a single Ethernet RJ45 CAT5/5e/6 cable, it supports high resolution up to 1920*1440@60Hz and keyboard/mouse signal and vga loop out signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

Ø Transmits VGA video and audio signal up to 200m/660ft over CAT5/5e/6 cable

Ø Support video resolution up to 1920x1080@60Hz,1920x1440@60Hz.

Ø Compliance with VGA standard.

Ø Uncompress,no delay,no loss.

Ø Support VGA loop out function.

Ø Support keyboard and mouse signal transmission

Ø High compatibility, can auto-match source and display device.

Ø Built-in automatic adjustment system, make the image smooth, clear and stable.

Ø Built-in ESD protection system.

Ø Simple to install, plug and play.

Specifications:

Local Unit

Host Connection



 Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Male/Female 15-pin HD connector for computer connection



Local Access



Crisp and clear 1920x1440@60Hz video resolution.

Female 15-pin HD connector for local VGA monitor



Remote Unit



Supports resolutions up to 1920x1440@60Hz; refer to the resolution chart below for resolutions at different lengths.

Female 15-pin HD connector.



Video Quality Adjustment



Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extender.

Test Pattern for Cable Length



Environmental



Operating temperature: 32°F to 100°F (0°C to 38°C).

Storage temperature: -20°F to 140°F (-30°C to 60°C).

Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.

Dimensions



WxDxH (mm): 95*97*28mm

Weight(g):0.95KG(With packaging)



Power



220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).

Power Consumption: 6W (each - local and remote unit).

Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.





Package:

VGA KVM transmitter ……………………….……. 1 pcs

VGA KVM receiver …………………………………. 1 pcs

USB Cable …………………………….…………. 1 pcs
Power adapter ……………………………….... 2 pcs
User manual …………………………………..… 1 pcs
