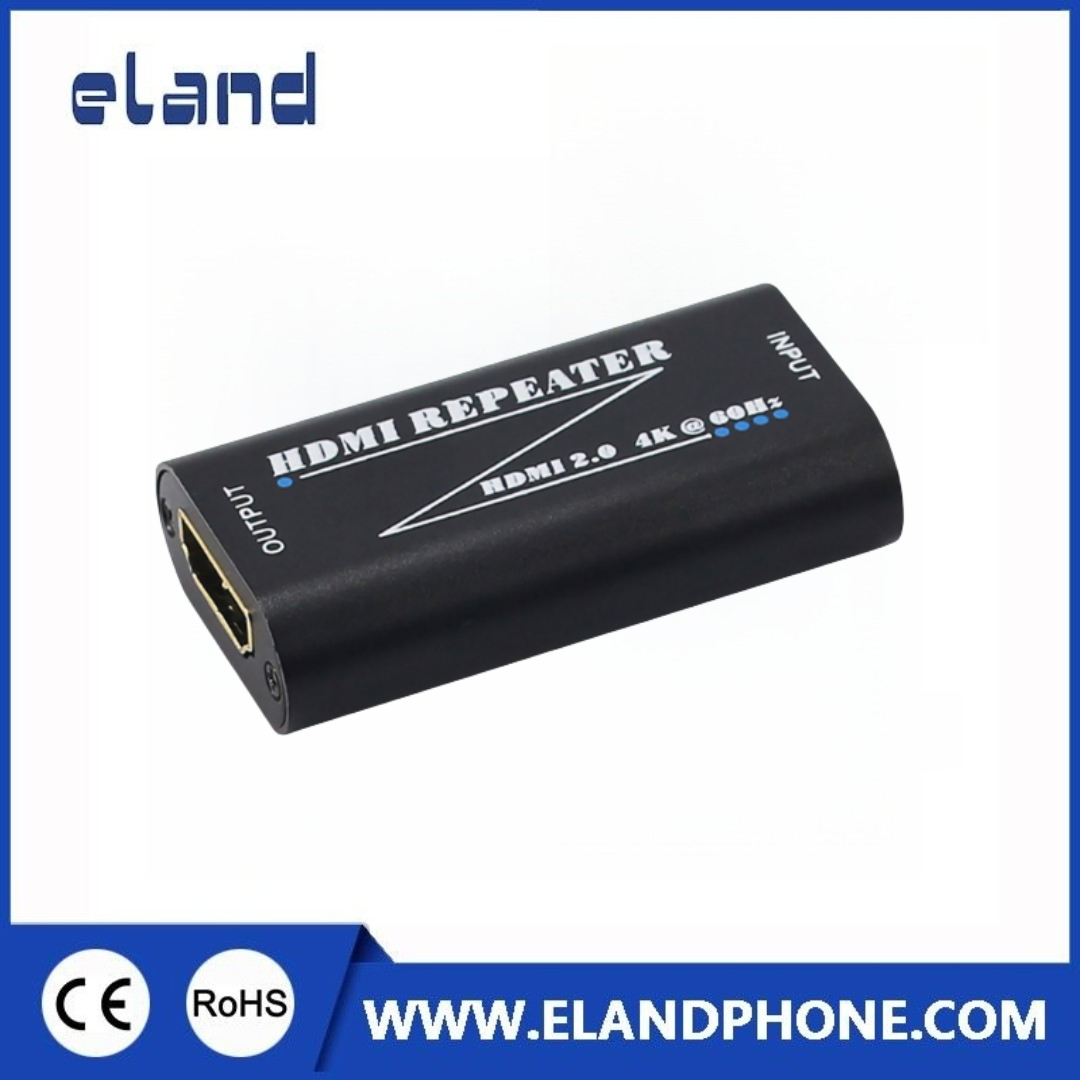

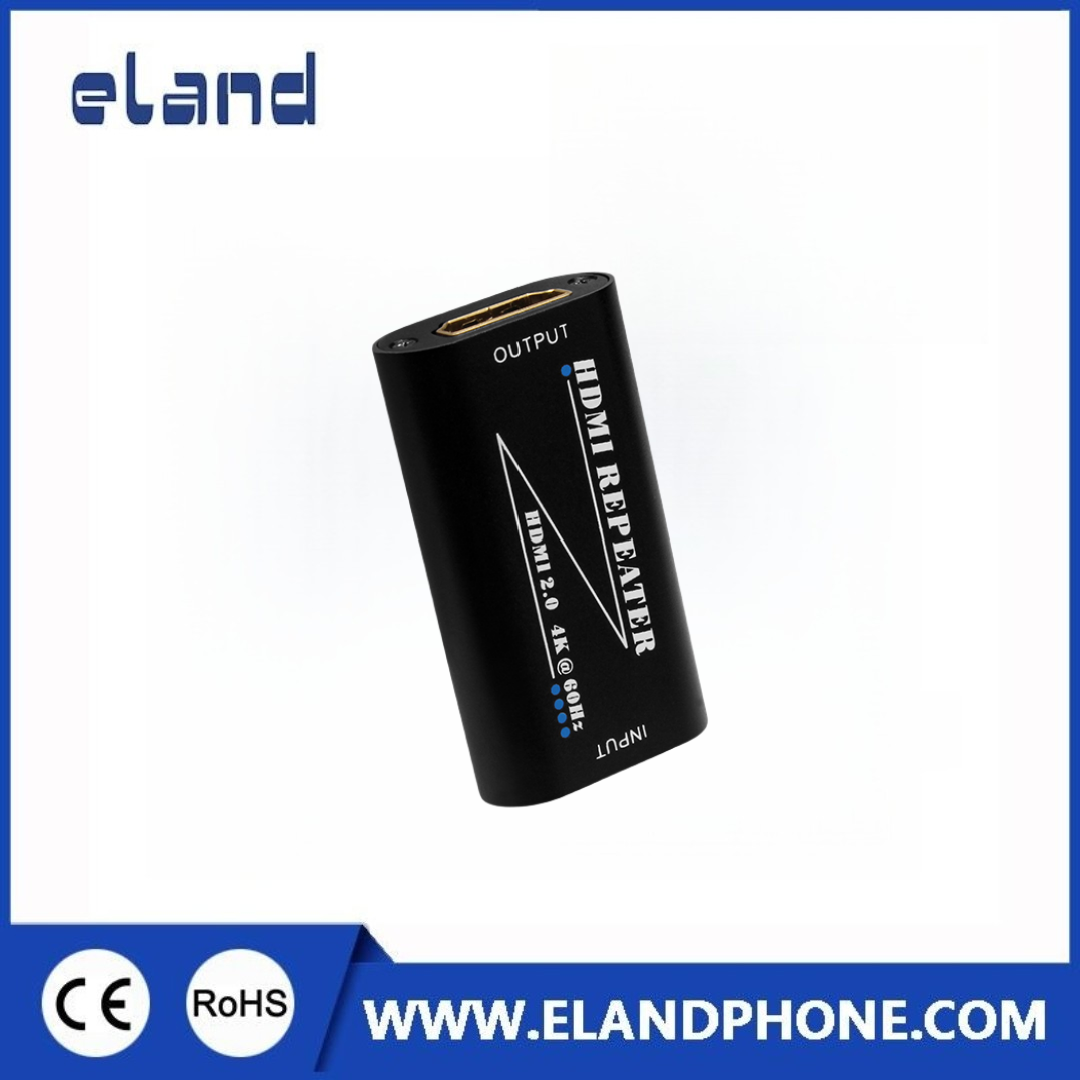

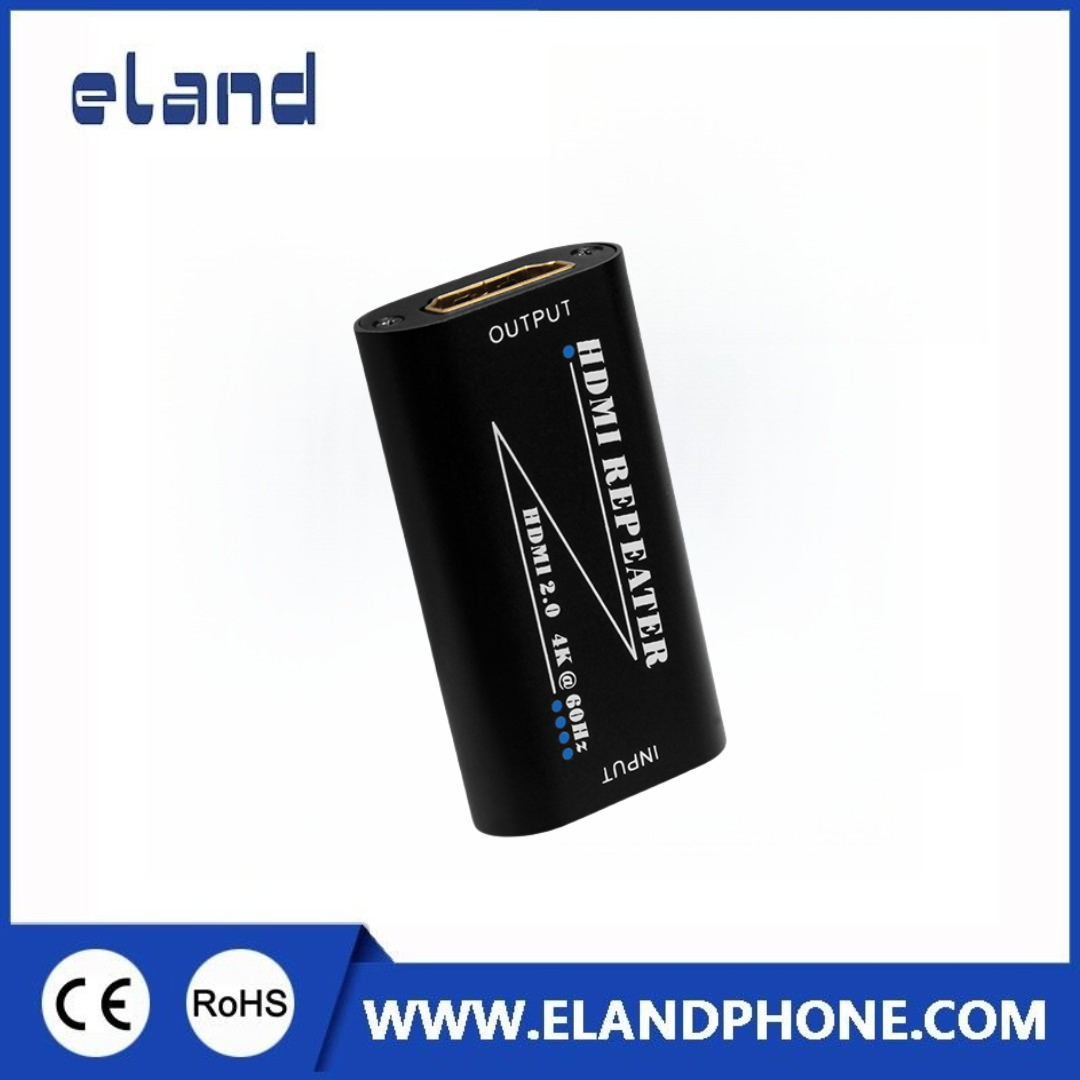

EL-A403A V2.0 HDMI Repeater 4K@60hz


MODEL:EL-A403A

ITEM:  30M HDMI Repeater 4K@60hz

Introduction:

This HDMI Repeater is mainly used for supporting the HDMI Signal long transmitting distance by amplifying the HDMI differential signal. It can buffer and amplifier the signal up to 30Meter, No Loss of Signal Quality.Suitable for home theater, multimedia demonstration, play station, HDTV, etc.



Features:

It can buffer and amplifier the signal.

Support HDR

Support 4K*2K @60Hz resolution

Video Format Support: 4Kx2K/60Hz 10Bit YcbCr4:2:0; 4Kx2K/60Hz 12Bit YcbCr 4:2:0 ; 4Kx2K/60Hz 8Bit YcbCr 4:4:4/ YcbCR4:2:0

The input/output HDMI Cable length can be up to 25m for 1080P signal and the input/output HDMI cable length can be up to 10m for 4K*2K signal.( Pls use the standard AWG 24 HDMI Cable).

 No Loss of Signal Quality

 Easy Operation



Specifications:

HDMI Connector:Type A 19Pins Female

HDMI Input:4K@60Hz /4K@30Hz/1080P/1080i/720p/576p/576i/480P/480i

HDMI Output:4K@60Hz /4K@30Hz/1080P/1080i/720p/576p/576i/480P/480i

Max Transmission Rate:600MHz

Max baud rate:18Gbps

Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)

Input/Output DDC signal:5Volts p-p (TTL)

Input cable distance:≤25m(1080P)/10M(4K) AWG24 HDMI standard cable

Output cable distance:≤25m(1080P)/10M(4K) AWG24 HDMI standard cable
