MODEL:EL-A618

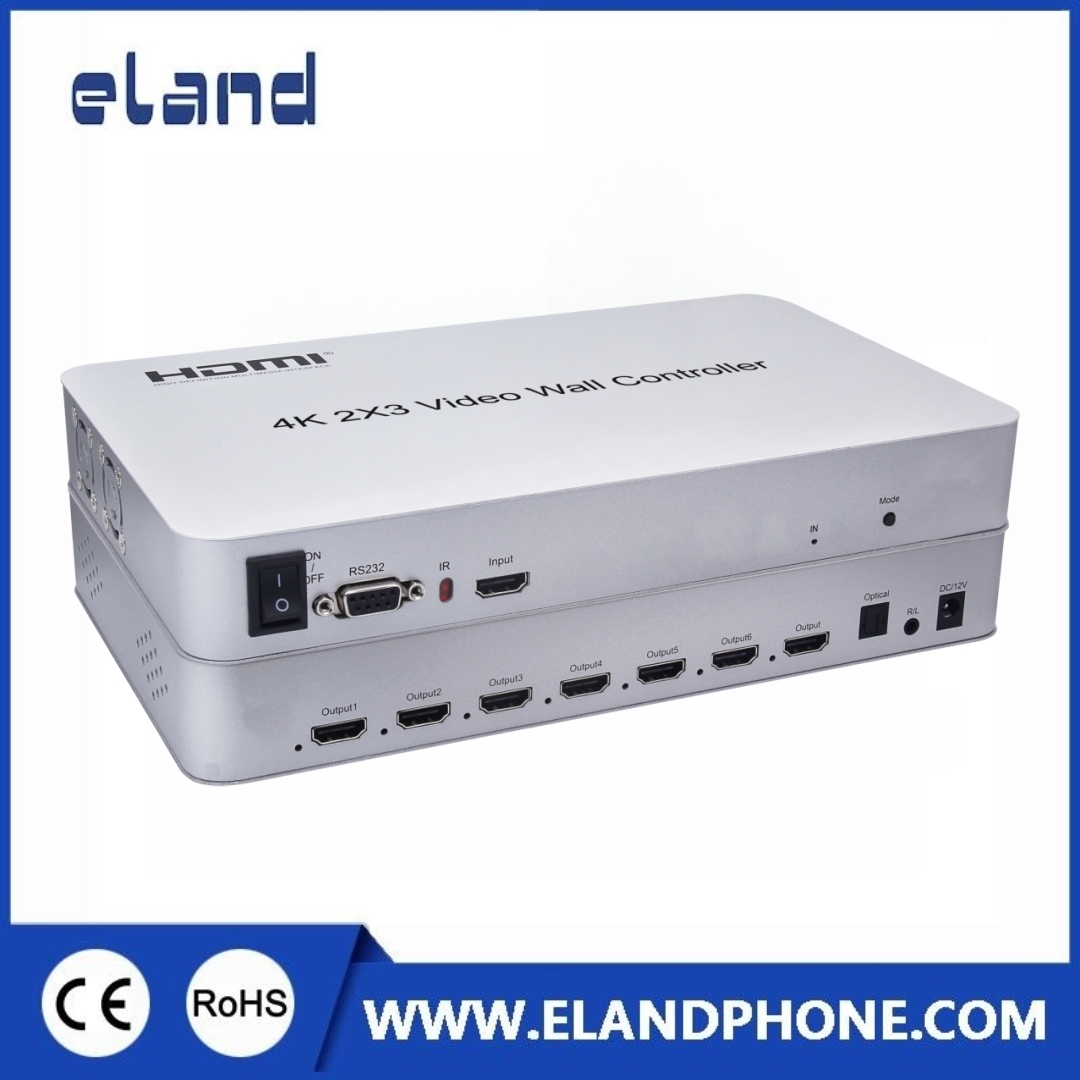

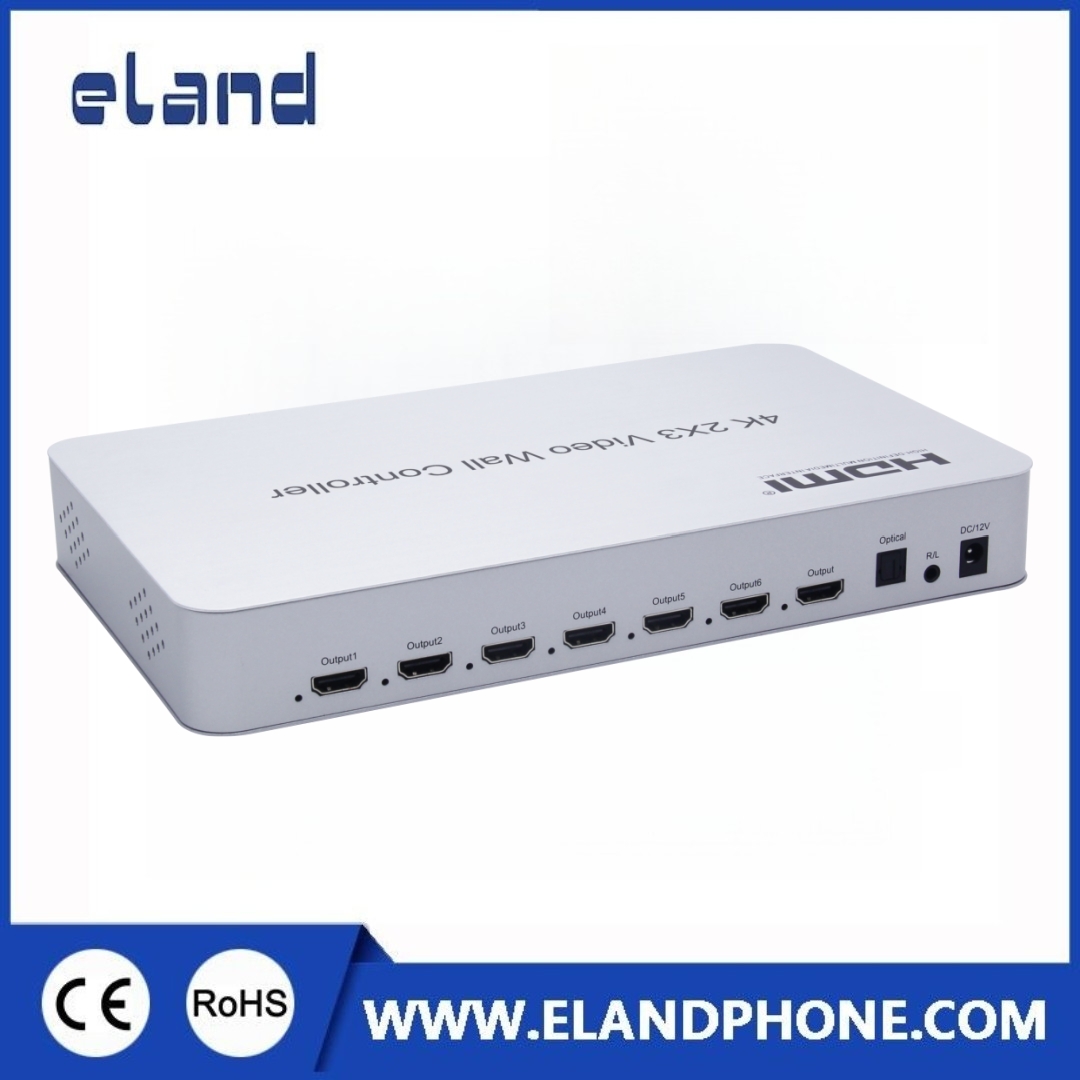

ITEM: 2X3 Video Wall Controller

Introduction:

   The 2x3 video wall controller , support 1-way HDMI input and 6-way HDMI outputs, the main function is to divide a complete HD image signal into 6 blocks and assign to 6 video display units(such as Rear projection unit, LCD TV, etc.), Complete with 6 HDMI high-definition video display units to form a large dynamic image screen.compose a video wall perfectly without any control software, plug and play, easy to operate. Widely used in occasion of advertising screen, restaurant, teaching,etc..

Features:

* Support multiple splicing modes；

* Support cascade splicing,you can splice more than 6 video walls；

 * Support function of audio extraction, digital optical fiber and analog 3.5mm audio output；

 * Pure hardware design, plug and play, no need any software.

Specifications:

HDMI input resolution …………………………. the highest support 3840x2160/30Hz HDMI output resolution ………………………… the highest support1920x1080/60Hz Support audio format ………………..……..DTS-HD/DTS/Dolby-AC3/PCM,etc.

SpecificationsPhysical interface diagram

Input cable length .......................................... 4K/30HZ,≤8m AWG26 HDMI standard cable 4K/60HZ, ≤3m, V2.0 standard cable

Output cable length ………………….………….... ≤10M,AWG26 HDMI standard cable

Max working current …………………………….....................……. 2A

Power adapter specifications …...... input AC (50HZ, 60HZ) 100V-240V Output 12VDC/3A

Operating Temperature range ………………………………………..... (-10℃～ +45℃) Dimension (L x W x H) ………………………………...…………263x159x38(mm) Weight ….…..……………………………………………...............1258.5g
