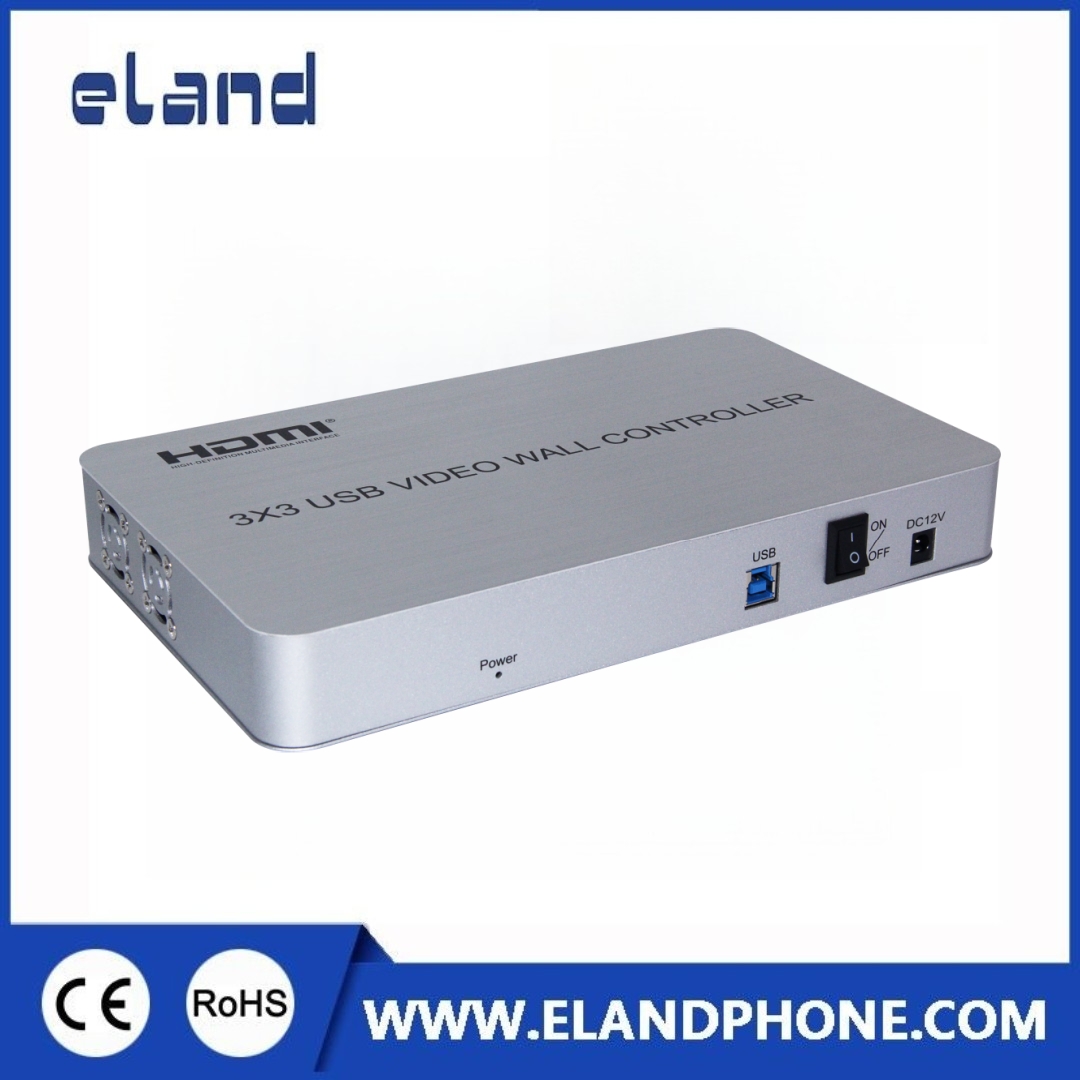

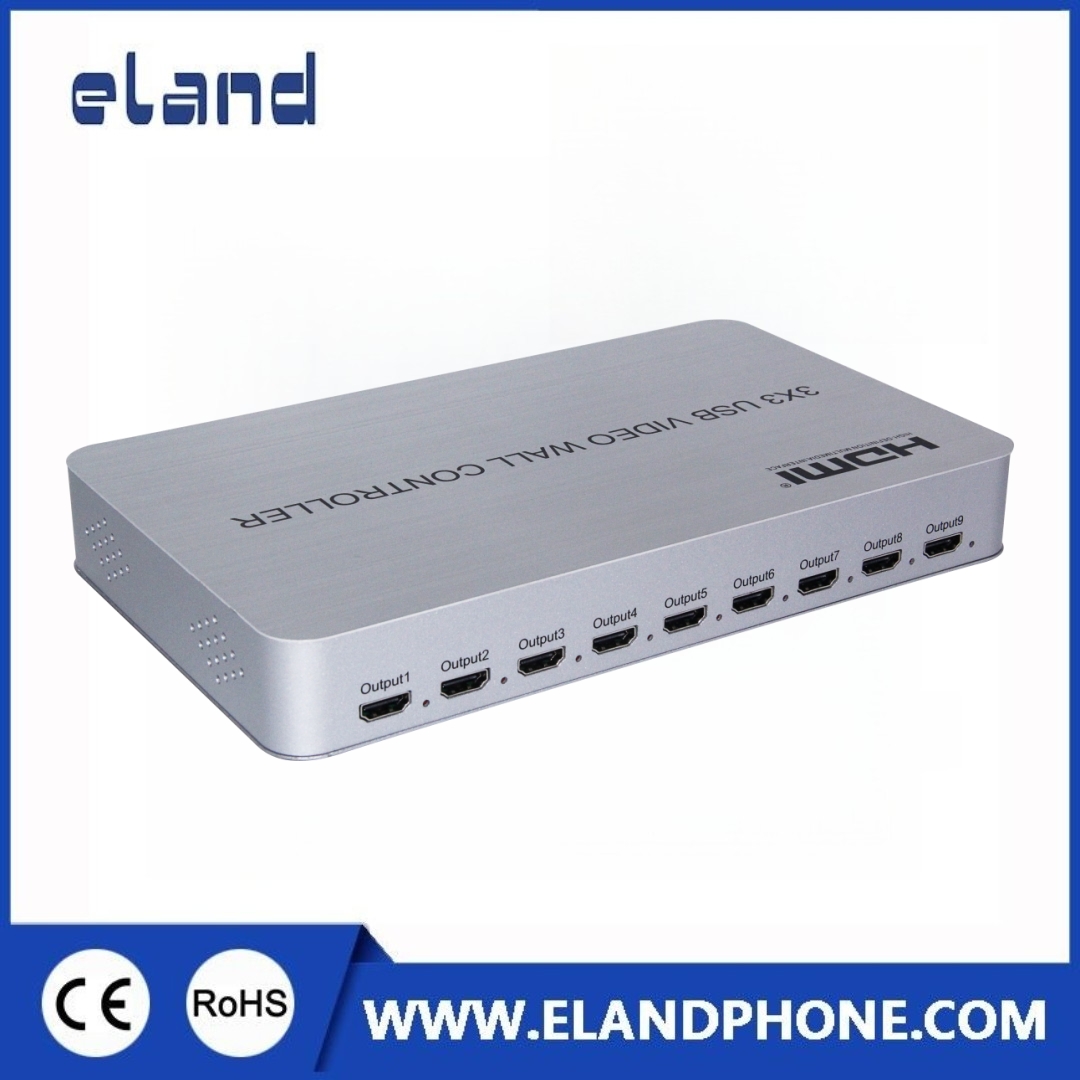

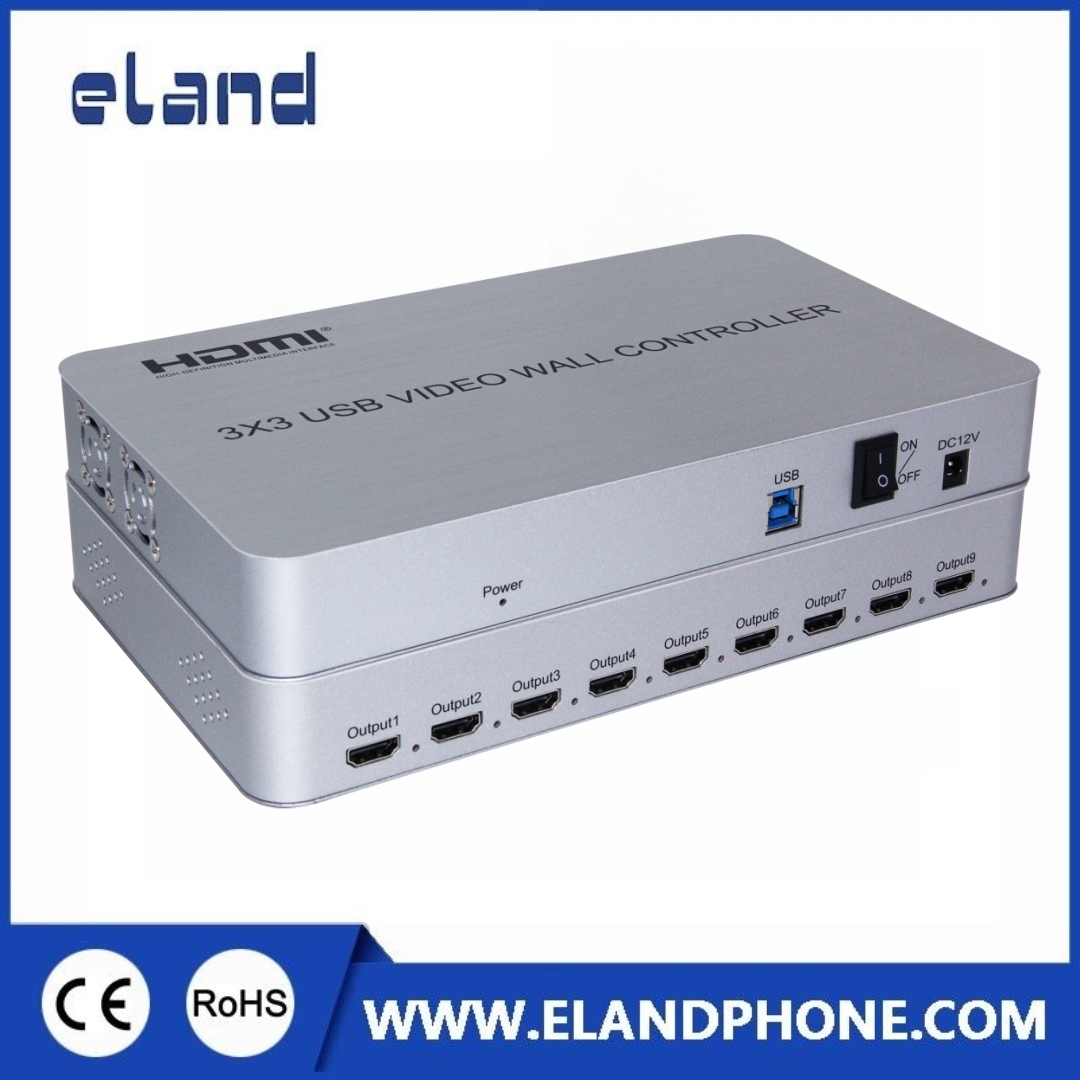

MODEL:EL-A619
ITEM: 3X3 Video Wall Controller
Introduction:
The 3X3 video wall controller is able to data-push the video of USB 3.0 port to max. 9 displays to finish the splicing of the whole video pictures. USB 3.0 port support max.4K resolution input and output HD video pictures to displayers
Features:
*Support USB3.0
* Support input highest resolution: 4k
* Support hdmi output
* Support screen rotation at any angle
*Support eliminate borders of splicing,projection fusion
* Support discretionarily splicing mode, the max 9 displays.
* Support give best resolution for displays automatically.
* Support perfect image without stretch
* Support only Windows 10 system and 64 bit
Specifications:
USB version ........................................................................................................... USB 3.0
Input resolution ………………………………...……...…….......…....….................. up to 4K
SpecificationsPhysical interface diagram
Outdoor video wall Shopping mall video wall Monitor room
Application scene
Output resolution ...………………………………………......………………….. Max. 1080P
Input cable length .…...………….……………….............… ≤1.5 M
USB3.0 standard cable Output cable length ……………….……..........….… ≤10M AWG26
HDMI standard cable Max.working current………..................……….......………..........…………….…… 1.6 A
Power adaptor: …………..……….Input AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A
Working temperature range ...…….......................………………..……... (-10 ~ +55℃)
Dimension ……………..............………………………….....……..…. 263x159x38(mm)
Weight ….…..……………………………………………….....……….......…. appr.1300g
